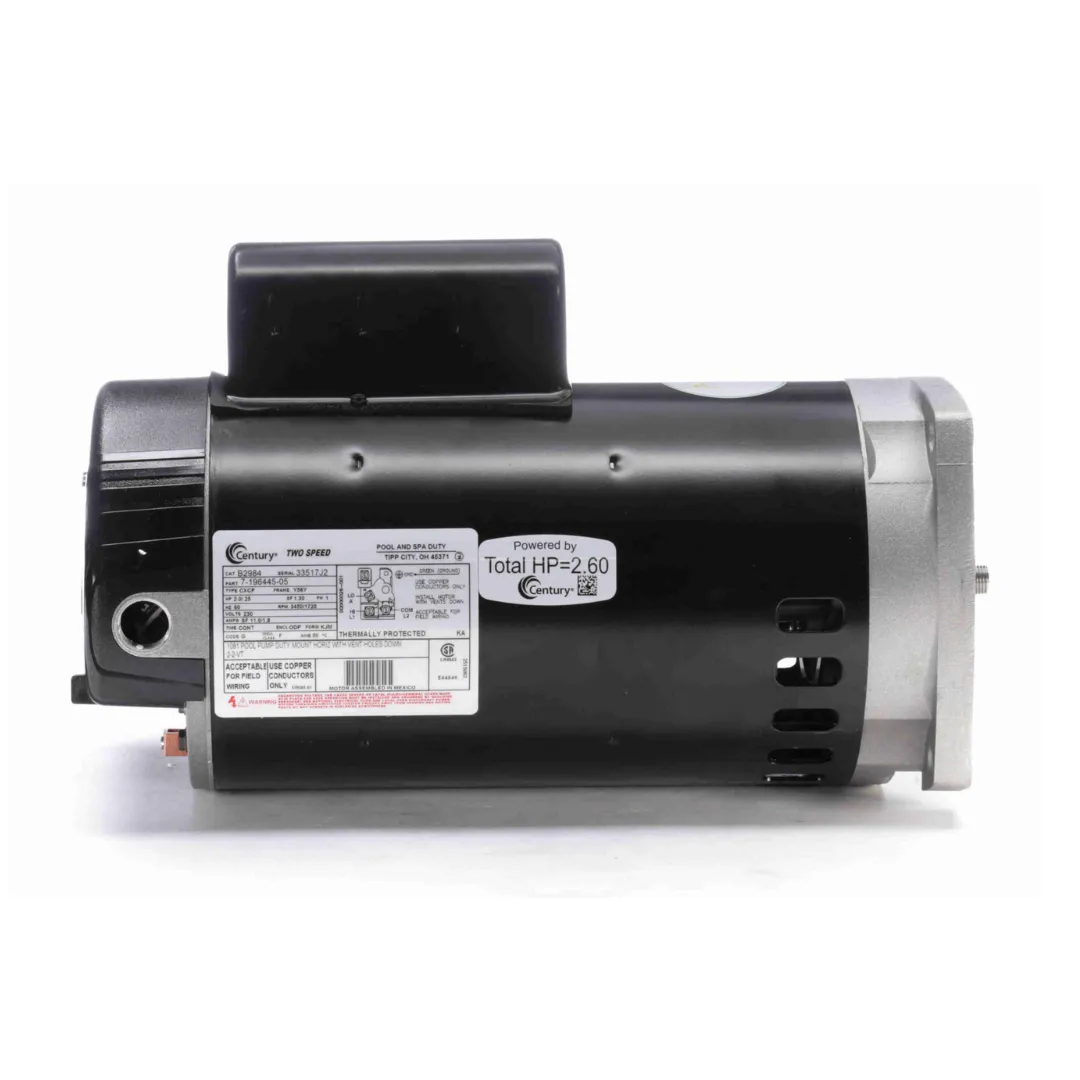

B2984 2 HP 230V 2 SPD HIGH EFF MOTOR
- Two Speed
- Sealed Ball Bearings
- 50°C Ambient
- Energy Efficient High and Low Speed
- Open Dripproof
- Permanent Split Capacitor on High Speed
- Cap Star/Cap Run Low-Speed
- 303 Stainless Steel Shaft
- Threaded Shaft
- Meets California Energy Commission Appliance Regulations 2008
Specifications:
- Phase: 1
- Output HP: 2.0/.25 Hp
- Output KW: 1.5 kW
- Voltage: 230 V
- Speed: 3450/1725 rpm
- Service Factor: 1.3
- Frame: 56Y
- Enclosure: Open Drip Proof
- Thermal Protection: Thermally Protected
- Ambient Temperature: 50 °C
- Frequency: 60 Hz
- Current: SF 11.0/1.8 A
- Duty: Continuous
- Insulation Class: F
- UL: Recognized
- CSA: Y
